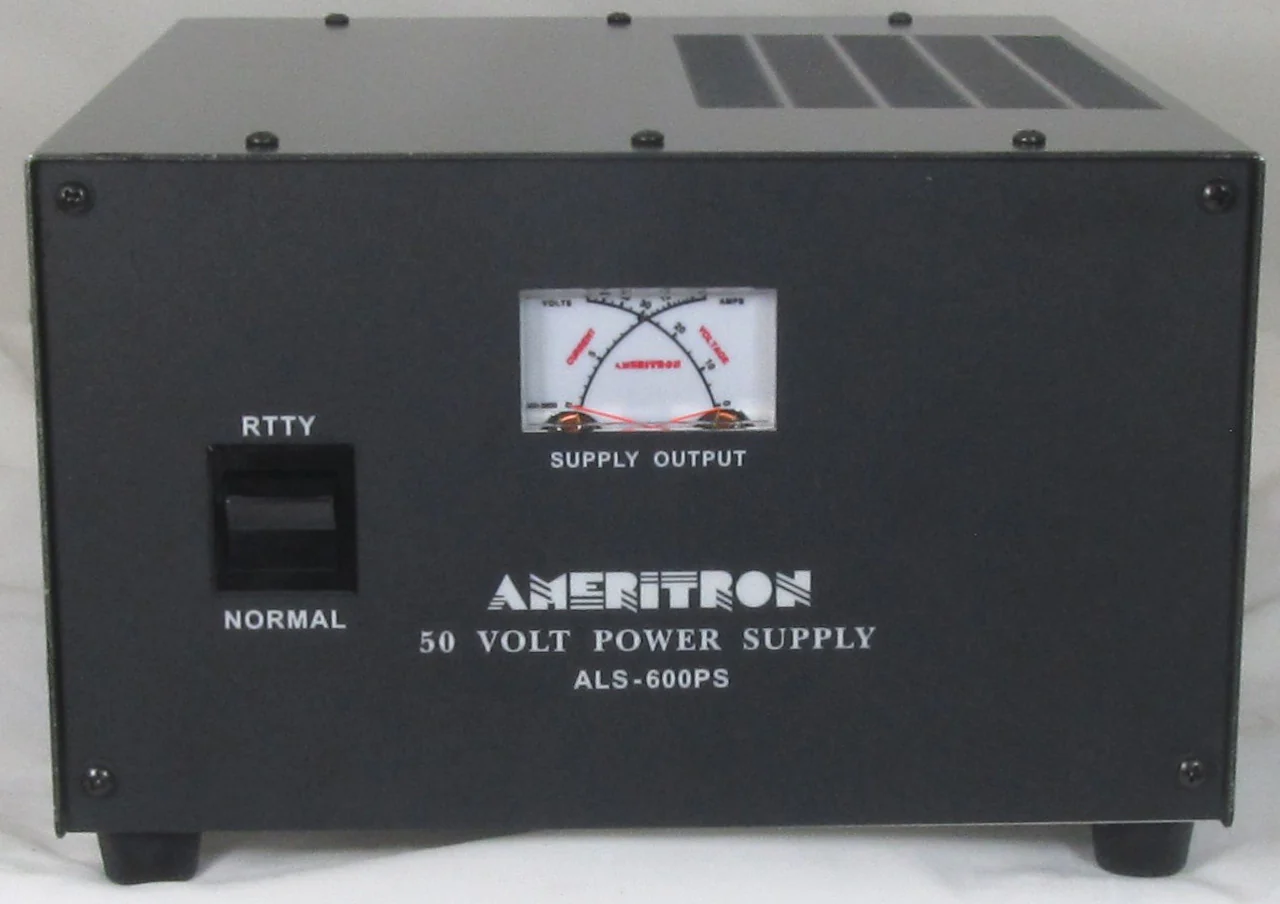

50 VDC Linear Power Supply for Ameritron 600 Watt ALS and other solid state amplifiers
ALS-600PS, $999.95, Heavy Duty Linear Power Supply features: •Massive choke input filter greatly improves voltage regulation and reduces peak AC line current
- AMERITRON’s exclusive Multi-Voltage Power Transformer lets you compensate for stressful high line voltage and performance robbing low line voltage
- Step-Start Inrush ProtectionTM stops damaging inrush currents and extends the life of your power supply components
- Illuminated Cross-Needle Meter monitors voltage and current of 50 VDC line.
- Extremely quiet fan • Very compact 91/2Wx61/2Hx12D inches -- can be placed conveniently out of the way
- Wired for 120 VAC, supplies 50 VDC at 25 Amps to ALS-600 amplifier
- Also use on 100-130 VAC and 220-250 VAC, 50/60 Hz
- Draws less than 12 Amps at 100 VAC and less than 6 Amps at 230 VAC
- Includes prewired cable to plug into Ameritron ALS amplifiers
ALS-600PS Power Supply Specifications:
Line Input: 120 VAC/240 VAC.
Output: 50 VDC, 25 Amps, +/-14 VDC, 1 Amp.
Metering: Cross-needle for volt/amp.
Output Cable: 6 foot prewired cable with Beau multi-contact connector to mate with ALS-600 amplifier.
Dimensions: 9 1/2W x 6 1/2H x 12D inches.
Operating Weight: 32 lbs.*
Shipping Weight: 37 lbs.*
AC Line Connector: NEMA-5-15P.
